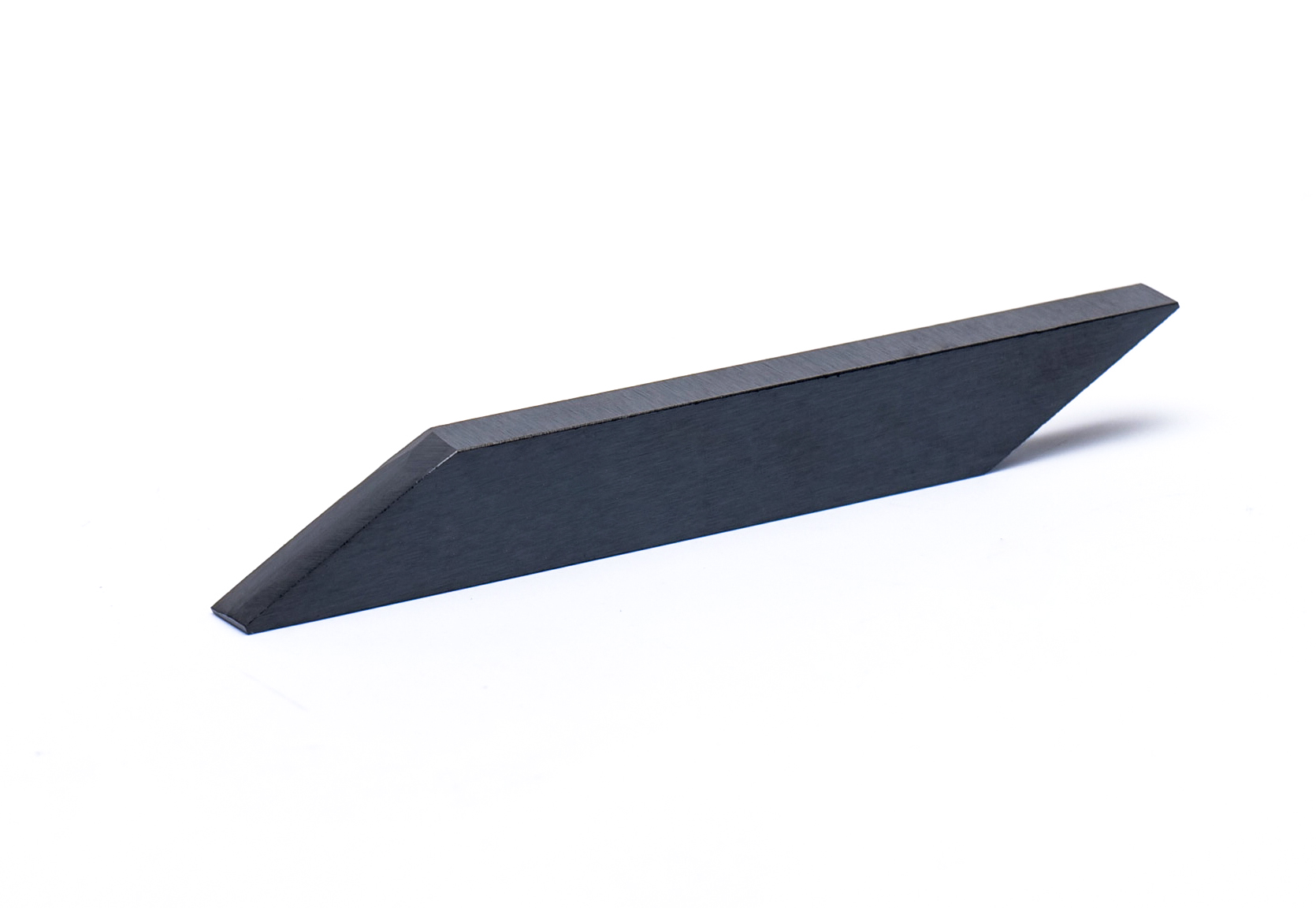

Positioning bar
Performance Characteristics of Main Materials of Ceramic Wear Parts
| Material Science Brand | density （g/cm³） | hardness Hv（Gpa） | Bending strength （Mpa） | fracture toughness （Mpa m1/2） | Thermal conductivity w/(m.k) | Coefficient of thermal expansion (x10-6/K) | Volume resistivity Ω.cm） | main features | main purpose |
| RCVS01 | 3.20 | 14~16 | 700~1000 | 8 | 20~25 | 3.1 | ≥1014 | Light weight, high strength, high abrasion resistance and impact resistance Good, corrosion resistant, high insulation, self-lubricating | Wear resistant patch |
| RCHS01 | 3.32 | 17~18 | 700~1000 | 7 | 30~35 | 3 | ≥1014 | Wear parts, structural parts | |
| RCHS02 | 3.75 | 20~21 | 600~800 | 6 | 40~45 | 3.5 | <1 | Light weight, high hardness, high wear resistance, corrosion resistance Good high-temperature performance | CNC blade, wire drawing die |
| RCHS03 | 3.38 | 18~19 | 700~900 | 6.5 | 35~40 | 3.2 | ≥108 | CNC blade, wire drawing die | |
| RCHT03 | 4.85 | 20~22 | 700~900 | 7 | - | 7 | 0.01 | High strength, high hardness, high wear resistance and high temperature performance Good, good conductivity | CNC blade, wire drawing die |
Silicon nitride ceramics have the characteristics of high strength and toughness, good impact resistance, high hardness and excellent wear resistance.
The acicular and columnar crystal structure ensures that its wear resistance is more than 10 times that of alumina ceramics.
Excellent heat resistance and corrosion resistance, ranking first in the field of ceramics.
Under normal conditions, the density of silicon nitride is only 3.2g/cm ³。
