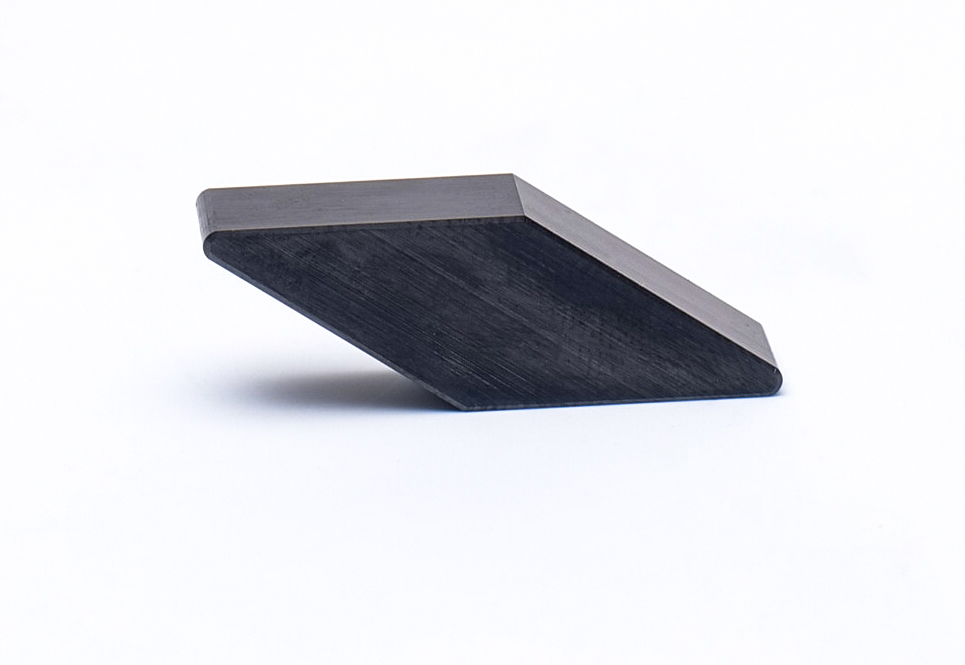

80 ° diamond blade
Ruiketao Ceramic Blade Specification
| shape | brand | model | size（mm） | Negative chamfer | ||||
| inscribed circle | thickness | Blade tip radius | 01020 | 02520 | 03030 | |||
 | RCHT03 | CNGN120408 | 12.70 | 4.76 | 0.8 | ● | ● | |
| CNGN120412 | 12.70 | 4.76 | 1.2 | ● | ● | |||
| CNGN120708 | 12.70 | 7.94 | 0.8 | ● | ● | |||
| CNGN120712 | 12.70 | 7.94 | 1.2 | ● | ● | |||
| CNGN160708 | 15.875 | 7.94 | 0.8 | ● | ● | |||
| CNGN160712 | 15.875 | 7.94 | 1.2 | ● | ● | |||
Blade specifications can be customized according to customer needs
Performance Characteristics of Main Materials of Ceramic Inserts
| Material grade | density（g/cm³） | hardnessHv（Gpa） | Bending strength（Mpa） | fracture toughness（Mpa m1/2） | characteristic | |
| RCHS02 | 3.75 | 20~21 | 600~800 | 6 | Excellent wear resistance, suitable for semi finishing and finishing | |
| RCHS03 | 3.38 | 18~19 | 700~900 | 6.5 | Good impact toughness, suitable for rough and semi finish machining | |
| RCHT03 | 4.85 | 20~22 | 700~900 | 7 | Excellent wear resistance, suitable for semi finishing and finishing | |
Materials with different numbers are made by adding metal binder on the basis of silicon nitride
The RECT ceramic tool has the following characteristics:
❊High hardness and wear resistance, the hardness at room temperature reaches 91~95HRA;
❊High heat resistance, 80% room temperature hardness, bending strength and toughness at 1000 ℃;
❊High chemical stability, small affinity between ceramic and metal, good high-temperature oxidation resistance;
❊With low friction coefficient, the chip is not easy to stick to the knife, and it is not easy to produce chip buildup.
