Special ceramics
RCSC
Committed to the production, R&D, sales and related technical consulting services of silicon nitride ceramics and cermet materials
Committed to the production, research and development, sales and related technical consulting services of silicon nitride ceramics and cermet materials.

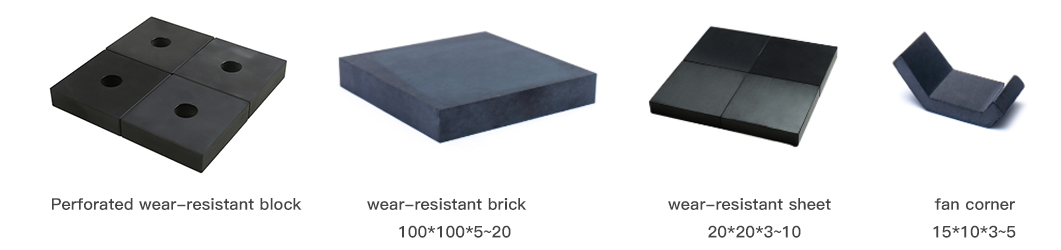

Perforated wear-resistant block
Performance Characteristics of Main Materials of Ceramic Wear Parts
| Material Science Brand | density （g/cm³） | hardness Hv（Gpa） | Bending strength （Mpa） | fracture toughness （Mpa m1/2） | Thermal conductivity w/(m.k) | Coefficient of thermal expansion (x10-6/K) | Volume resistivity Ω.cm） | main features | main purpose |
| RCVS01 | 3.20 | 14~16 | 700~1000 | 8 | 20~25 | 3.1 | ≥1014 | Light weight, high strength, high abrasion resistance and impact resistance Good, corrosion resistant, high insulation, self-lubricating | Wear resistant patch |
| RCHS01 | 3.32 | 17~18 | 700~1000 | 7 | 30~35 | 3 | ≥1014 | Wear parts, structural parts | |
| RCHS02 | 3.75 | 20~21 | 600~800 | 6 | 40~45 | 3.5 | <1 | Light weight, high hardness, high wear resistance, corrosion resistance Good high-temperature performance | CNC blade, wire drawing die |
| RCHS03 | 3.38 | 18~19 | 700~900 | 6.5 | 35~40 | 3.2 | ≥108 | CNC blade, wire drawing die | |
| RCHT03 | 4.85 | 20~22 | 700~900 | 7 | - | 7 | 0.01 | High strength, high hardness, high wear resistance and high temperature performance Good, good conductivity | CNC blade, wire drawing die |
The silicon nitride wear-resistant patch series products produced by Ruikete Ceramics can be widely used in the hopper, silo, pipeline and other key parts requiring strong wear-resistance and impact resistance in steel, mining, port, power generation, cement and other industries. They can be combined with aluminum oxide ceramic wear-resistant patches to improve the overall wear-resistance by more than 10 times. The products have been widely used in Xinri Steel, Baosteel and other enterprises。
